Working within the demanding environment of a foundry, one is constantly reminded of the intricate link between process stability, equipment reliability, and the final quality of castings. One of the most critical post-casting processes, heat treatment, is particularly susceptible to variability, and equipment failures can directly contribute to a range of costly and time-consuming heat treatment defects. Issues such as non-uniform heating, temperature fluctuations, and inadequate atmosphere control often stem from or are exacerbated by auxiliary equipment not performing as intended. My experience across various foundry operations has centered on addressing these root causes through practical, in-house equipment innovations. The goal is to create robust, simple, and effective solutions that enhance process control, thereby directly mitigating the risks of distortion, soft spots, cracking, and other common heat treatment defects. The following sections detail several such modifications and new builds, focusing on their design rationale and operational benefits.
The journey often begins with foundational processes. In one facility, the preparation of refractory coatings—a crucial step for mold and core surfaces—was plagued by an inefficient and maintenance-heavy stirring system. The existing mixer suffered from severe corrosion of its components due to constant exposure to abrasive and chemically active slurries. Frequent breakdowns and arduous repair work were the norm, creating bottlenecks and potential inconsistencies in coating quality, which can later manifest as metal penetration or burn-on defects in castings, complicating subsequent heat treatment by creating stress concentrations.
To resolve this, a new propeller-type coating stirrer was designed and manufactured. The core philosophy was durability and stability. All wetted parts were constructed from corrosion-resistant materials like tin bronze. A critical innovation was the sealing system: a floating barrel-type waterproof sleeve fixed to the shaft, employing a static O-ring seal. This design eliminated relative motion at the sealing interface, preventing wear on the elastomer and ensuring a reliable, leak-free operation. The agitation mechanism itself was rethought. By incorporating a propeller within a stationary draft tube (or flow guide), the required length of the main drive shaft was dramatically shortened. This configuration significantly improved dynamic stability, eliminating vibration and shaft whip, leading to a smoother, quieter, and more efficient mixing action. A homogenously suspended coating ensures even application and consistent drying characteristics, which is a small but vital step in preventing surface-initiated heat treatment defects later in the component’s life. The drive coupling was also simplified, replacing standard flexible elements with custom rubber pads acting between inner and outer ring assemblies. This modification retained necessary flexibility for misalignment absorption while being simpler to machine and assemble.
| Component | Design Feature | Material/Type | Primary Benefit |
|---|---|---|---|
| Agitation System | Propeller + Draft Tube | Bronze/Steel | Short shaft, high stability, no vibration |
| Shaft Seal | Floating Barrel with Static O-ring | Stainless Steel / Nitrile Rubber | Zero wear, guaranteed leak-proofing |
| Wetted Parts | Impeller, Tank, Draft Tube | Tin Bronze | Superior corrosion resistance |
| Flexible Coupling | Rubber Pad between Rings | Steel / Industrial Rubber | Simple, elastic, quiet, easy maintenance |
| Performance Outcome | Uniform slurry, high efficiency, low noise, minimal downtime | ||
The mixing efficiency can be related to the power number (NP) for a propeller in a baffled (or in this case, drafted) condition:
$$ P = N_P \cdot \rho \cdot N^3 \cdot D^5 $$
where \( P \) is the power input, \( \rho \) is fluid density, \( N \) is rotational speed, and \( D \) is the propeller diameter. The draft tube stabilizes flow, likely allowing operation at a more favorable, consistent \( N_P \), ensuring effective blending without dead zones.

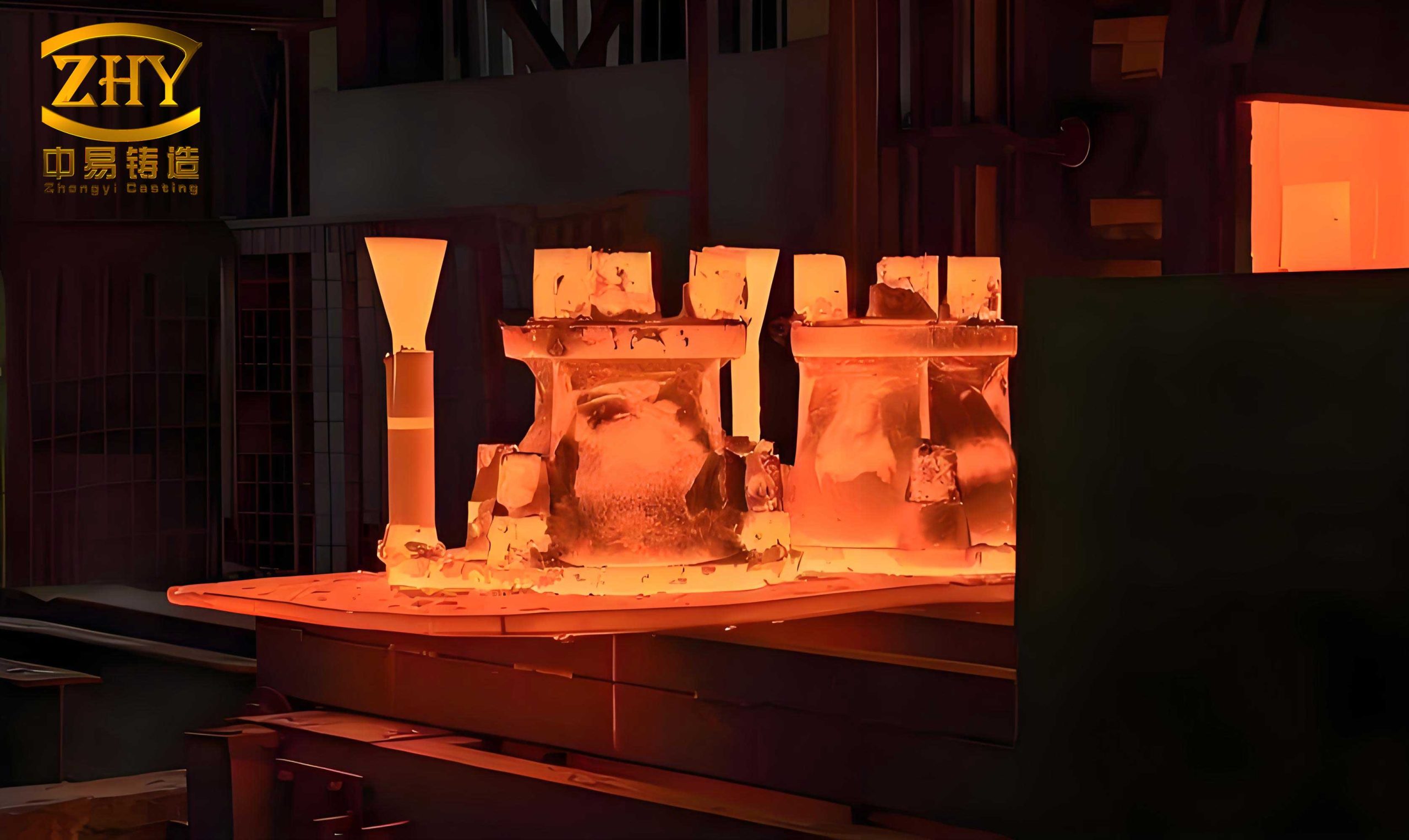

Another persistent challenge was found in the heat treatment shops themselves, specifically with bogie hearth (car-bottom) furnaces. The movement of the massive, load-laden trolley in and out of the furnace was problematic. Original designs used three pairs of conventional axle-mounted bearing wheels. In the harsh environment of a heat treat shop—characterized by significant dust, thermal expansion, and eventual rusting—these bearings would either seize due to reduced clearance when hot or cause excessive drag if clearance was increased, leading to catastrophic failures like the repeated snapping of 20mm diameter steel pull cables. This unreliable movement is a direct threat to process control; a stuck or jerky-moving car can disrupt temperature uniformity within the furnace chamber, a prime cause for gradient-related heat treatment defects such as distortion and uneven hardness.
The solution was inspired by applications in sand drying ovens: the implementation of a differential rolling bogie system. The key is to replace sliding or complex bearing friction with pure rolling motion. In this design, the car frame is supported on upper rails that rest on large-diameter free-rolling wheels. These wheels, in turn, roll on a fixed set of lower rails. The motion is thus achieved through a cascade of rolling interfaces. The mechanical advantage and reduced friction can be understood through the concept of velocity ratios and rolling resistance. The force \( F_{pull} \) required to move the car is drastically reduced compared to a bearing-based system plagued by friction and seizing.
The rolling resistance torque \( M_{roll} \) for a wheel on a rail is approximated by:
$$ M_{roll} = f \cdot W \cdot r $$
where \( f \) is the coefficient of rolling resistance (very low for steel-on-steel), \( W \) is the load on the wheel, and \( r \) is the wheel radius. By using large wheels and ensuring clean, true rolling contact, the total moment to overcome is minimized. This simple, robust design has no sensitive bearings to clog or rust, making it exceptionally suitable for high-temperature environments. The reliable and smooth traversal of the bogie ensures precise positioning within the furnace and contributes to stable thermal cycles, actively preventing temperature-related heat treatment defects.
| Component | Traditional System | Differential Rolling System | Improvement |
|---|---|---|---|
| Motion Mechanism | Bearing-mounted wheels | Free-rolling wheels between upper/lower rails | Pure rolling vs. sliding/bearing friction |
| Friction Source | Bearing internal friction, seal drag, rust | Steel-on-steel rolling resistance | Friction coefficient reduced by an order of magnitude |
| Thermal Sensitivity | High (bearing clearance critical, grease fails) | Very Low (no precision fits or lubricants) | Impervious to heat-induced seizure |
| Maintenance | High (bearing replacement, lubrication) | Very Low (occasional inspection, no lubrication) | Drastically reduced downtime and cost |
| Impact on Process | Unreliable movement, risk of snagging/failure | Smooth, reliable, consistent positioning | Enhances furnace temperature uniformity |
Moving further upstream in the production chain, the preparation of charge materials is another area ripe for optimization. Breaking down large iron pigs and scrap castings is a physically demanding and hazardous task. Manual sledgehammer methods are inefficient and pose serious safety risks. Inconsistent fragment sizes from manual breaking can also lead to poor packing density in furnace charges, causing uneven melting and, subsequently, compositional variations that might only be revealed—or worsened—during heat treatment, potentially leading to unexpected heat treatment defects related to microstructure.
The first approach to mechanize this was a dedicated pig iron breaker, designed around the principle of a crank press. It features a heavy flywheel mounted directly on the main shaft to store energy, and a robust frame to withstand the impulsive loads. The key innovation lies in its adjustable anvil system. A threaded adjustment mechanism at the rear allows the fixed anvil’s position to be varied over a 30mm range, accommodating different fracture requirements and tool wear. A feed table facilitates the loading of material. The machine delivers a controlled, high-energy impact. The kinetic energy \( E_k \) available at the moment of fracture is a function of the flywheel’s moment of inertia \( I \) and the change in its angular velocity \( \Delta \omega \):
$$ E_k = \frac{1}{2} I (\omega_1^2 – \omega_2^2) $$
This design ensures a consistent, repeatable breaking force, producing more uniform fragments compared to manual methods.
| Parameter | Specification |
|---|---|
| Maximum Load Capacity | 50 tons |
| Rated Output Energy | 300 kg·m (~2942 J) |
| Drive Motor Power | 7.5 kW |
| Main Shaft Speed | 90 rpm |
| Max. Workpiece Thickness | 180 mm |
| Thickness Adjustment Range | ±15 mm |
| Productivity | 2 tons/hour |
| Machine Weight | ~4 tons |
For greater flexibility and handling of larger, bulkier scrap castings, a mobile impact breaker was developed. This machine employs a distinctly different principle: an eccentric wheel driving a free-falling hammer. As the eccentric rotates, it lifts a heavy hammer head to a predetermined height before releasing it, allowing it to fall under gravity onto the target. This “drop hammer” principle delivers high impact force with relatively low input power. A key feature is its articulating arm, which can be folded for transport or repositioning around the shop, and extended to break large, flat castings. A semi-automatic feed mechanism improves safety and efficiency. The impact energy \( E_i \) here is primarily gravitational potential energy converted to kinetic energy:
$$ E_i = m \cdot g \cdot h $$
where \( m \) is the hammer mass, \( g \) is acceleration due to gravity, and \( h \) is the drop height (determined by the eccentric’s throw). By providing a controlled, mechanized means of size reduction, these breakers ensure a more consistent charge material, which promotes uniform melting and solidification—fundamental prerequisites for achieving a sound microstructure that will respond predictably to heat treatment, thus avoiding one category of root-cause heat treatment defects.
| Parameter | Specification |
|---|---|
| Hammer Weight | 150 kg |
| Hammer Stroke (Drop) | 400 mm |
| Impact Energy (Theoretical) | ~588 J per blow |
| Blows per Minute | 25 |
| Motor Power | 4.5 kW |
| Machine Weight | ~2.5 tons |
| Key Feature | Mobile, folding arm for large scrap |
In reflection, the common thread linking these diverse equipment projects is a focus on simplicity, reliability, and direct addressal of process pain points. Each innovation—from the corrosion-resistant stirrer and the pure-rolling furnace car to the energetic breakers—targets a specific source of variability. By eliminating unpredictable downtime, ensuring consistent mechanical action, and promoting uniform material states, they collectively build a more stable and controlled foundry environment. This stability is the first and most crucial defense against the myriad of problems that can arise during heat treatment. Inconsistent coatings, erratic furnace movements, and variable charge materials are all latent precursors to heat treatment defects. Therefore, investing in robust, purpose-built auxiliary equipment is not merely a maintenance issue; it is a fundamental strategy for quality assurance. It creates a stable platform upon which precise thermal cycles can be executed, ultimately yielding cast components with reliable mechanical properties and minimized internal stress, free from the distortions, soft spots, and cracks that define heat treatment defects. The practical, in-house development of such tools proves that significant gains in quality and productivity are often achieved not by the most complex technologies, but by thoughtful engineering applied to the foundational elements of the production process.
