Abstract
Steel casting plays crucial role in various industrial fields due to their excellent mechanical properties. The final performance of steel casting largely depends on the microstructure formed during the solidification process. This paper delves into the microstructure control techniques during the solidification of steel casting, exploring ways to optimize the microstructure and enhance the overall performance of steel casting by precisely regulating solidification conditions. By examining the thermodynamic principles, heat and mass transfer phenomena, and the kinetic mechanism of microstructure formation during the solidification of steel casting, the influence of key factors such as cooling rate and alloy composition on microstructure is discussed. Furthermore, numerical simulation techniques are employed to predict and optimize the microstructure of steel casting. Practical application cases are presented to illustrate the effectiveness of microstructure control techniques in improving product quality. This study provides valuable insights for steel casting manufacturers to achieve better product performance and quality through microstructure control.
1. Introduction

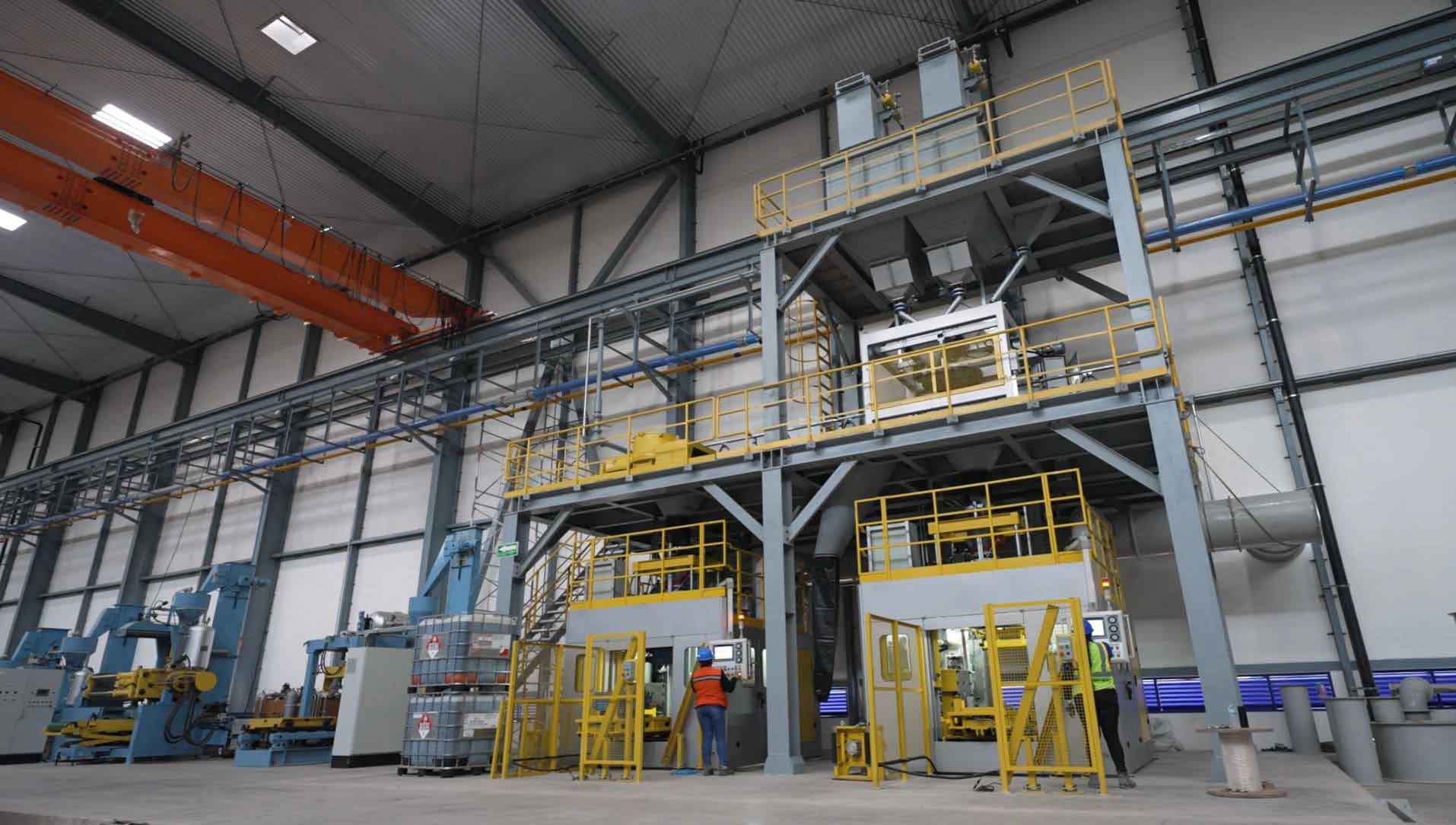

Steel casting is widely used in various industrial sectors due to their excellent mechanical properties, such as high strength, good ductility, and wear resistance. The final performance of steel casting is significantly influenced by their microstructure, which is formed during the solidification process. Therefore, understanding and controlling the microstructure during solidification is crucial for steel casting manufacturers to produce high-quality products.
The solidification process of steel casting involves complex physical and chemical phenomena, including heat transfer, mass transfer, and phase transformations. These phenomena are governed by thermodynamic principles and kinetic mechanisms, which determine the microstructure of the castings. By precisely regulating the solidification conditions, such as cooling rate and alloy composition, the microstructure can be optimized to improve the mechanical properties and service life of steel casting.
This paper aims to provide a comprehensive overview of microstructure control techniques during the solidification process of steel casting. The theoretical basis of the solidification process, including thermodynamic principles, heat and mass transfer phenomena, and the kinetic mechanism of microstructure formation, is discussed. The influence of key factors on microstructure is analyzed, and numerical simulation techniques for predicting and optimizing microstructure are introduced. Practical application cases are presented to illustrate the effectiveness of microstructure control techniques in improving product quality.
2. Theoretical Basis of the Solidification Process of Steel Casting
2.1 Thermodynamic Principles
The solidification process of steel casting follows the laws of thermodynamics, specifically the first and second laws of thermodynamics.
First Law of Thermodynamics (Energy Conservation Law): This law states that energy cannot be created or destroyed but can only be converted from one form to another. During the solidification of steel casting, the internal energy of the molten steel decreases as its temperature drops, releasing latent heat. This latent heat is transferred to the surrounding environment through conduction, convection, and radiation.
Second Law of Thermodynamics (Entropy Increase Principle): This law states that the entropy of a system tends to increase in a spontaneous process. During the solidification of steel casting, the entropy of the system increases as solid phases form, driving the solidification process forward spontaneously.
2.2 Heat and Mass Transfer Phenomena
During the solidification process of steel casting, heat transfer and mass transfer are two critical physical phenomena.
Heat Transfer: Heat transfer involves the movement of thermal energy from high-temperature regions to low-temperature regions. It can occur through three basic modes: conduction, convection, and radiation. Conduction is the primary mode of heat transfer within solids, while convection is more significant in liquids, particularly during the initial stages of cooling. Radiation becomes increasingly important as the temperature drops.
Mass Transfer: Mass transfer involves the diffusion of alloy elements across the solid-liquid interface. This process determines the distribution of alloy elements within the casting and affects its microstructure and properties.
2.3 Kinetic Mechanism of Microstructure Formation
The formation of microstructure during the solidification of steel casting is a kinetic process involving the adsorption, diffusion, and arrangement of atoms or molecules at the interface. Key factors that influence microstructure include crystal growth rate, grain size, grain orientation, and nucleation and growth of second phases.
Crystal Growth Rate: The crystal growth rate depends on the temperature gradient and cooling rate. Rapid cooling tends to produce smaller and more numerous crystals, which enhance the hardness and toughness of the material. However, extremely fast cooling may also induce stress accumulation and microcracks, damaging the structural integrity of the casting.
Grain Size: Grain size is influenced by the cooling rate and alloy composition. Grain refinement can improve the strength and toughness of castings.
Second Phase Nucleation and Growth: The nucleation and growth of second phases can improve the hardness and wear resistance of castings. By precisely controlling these kinetic parameters, the microstructure of steel casting can be optimized to achieve desired properties.
3. Key Techniques for Microstructure Control
3.1 Influence of Cooling Rate on Microstructure
The cooling rate is one of the primary variables that determine the formation of microstructure during steel casting solidification.
Rapid Cooling: Rapid cooling tends to produce fine-grained microstructures with high density. This structure enhances the hardness and toughness of the material but may also induce stress accumulation and microcracks.
Slow Cooling: Slow cooling allows for more extensive crystal growth, resulting in coarser grain structures. While this may compromise the hardness of the material, it enhances its ductility.
Table 1 summarizes the influence of cooling rate on the microstructure and properties of steel casting.
Table 1: Influence of Cooling Rate on Microstructure and Properties of Steel Casting
| Cooling Rate (°C/s) | Grain Size (μm) | Yield Strength (MPa) | Impact Toughness (J/cm²) | Hardness (HB) |
|---|---|---|---|---|
| 50 | 50 | 1000 | 200 | 300 |
| 30 | 100 | 900 | 180 | 280 |
| 20 | 200 | 800 | 150 | 250 |
As shown in Table 1, increasing the cooling rate from 20 °C/s to 50 °C/s significantly reduces the grain size, resulting in higher yield strength and impact toughness. However, the optimal cooling rate should be determined by balancing the trade-offs between hardness, toughness, and structural integrity.
3.2 Alloy Composition and Microstructure Regulation
Introducing alloy elements is an effective strategy for adjusting the microstructure of steel casting. Different alloy elements have varying effects on the solidification process and microstructure of steel casting.
Carbon (C): Carbon is a crucial alloy element in steel, forming carbides that enhance hardness and wear resistance.
Manganese (Mn): Manganese improves the strength and ductility of steel by refining grain structure and enhancing solid solution strengthening.
Vanadium (V), Niobium (Nb), and Titanium (Ti): These trace elements can refine grain structure by forming stable carbides or nitrides, thereby improving the mechanical properties of steel casting.
Table 2 shows the influence of different alloy elements on the microstructure and properties of steel casting.
Table 2: Influence of Alloy Elements on Microstructure and Properties of Steel Casting
| Alloy Element | Grain Size (μm) | Yield Strength (MPa) | Impact Toughness (J/cm²) | Hardness (HB) |
|---|---|---|---|---|
| V, Nb | 50 | 1000 | 200 | 300 |
| Mn | 100 | 950 | 170 | 290 |
| Ti | 200 | 850 | 140 | 270 |
As evident from Table 2, the addition of V and Nb elements results in the finest grain structure and the highest yield strength and impact toughness. In contrast, the addition of Mn elements improves strength but compromises impact toughness to some extent. The choice of alloy elements should be tailored to the specific requirements of the application to optimize the performance of steel casting.
3.3 Numerical Simulation and Optimization of Microstructure
Numerical simulation provides an effective means for predicting and optimizing the microstructure of steel casting. By using computer simulation techniques, the evolution of microstructure under different cooling rates and alloy compositions can be predicted.
Finite Element Analysis (FEA): FEA is a powerful tool for simulating the heat transfer and solidification process of steel casting. It can predict temperature distributions, cooling rates, and phase transformations, thereby providing insights into the formation of microstructure.
Phase-Field Modeling: Phase-field modeling is a microscopic simulation technique that can simulate the nucleation, growth, and coalescence of grains during solidification. This method provides detailed information about grain size, shape, and orientation.
By combining FEA and phase-field modeling, a comprehensive understanding of the solidification process and microstructure formation can be achieved. This, in turn, allows for the optimization of processing parameters to produce steel casting with desired microstructures and properties.
4. Application Cases of Microstructure Control Techniques
4.1 Microstructure Optimization of Steel Casting Under Specific Conditions
In some specialized industries, such as railway wheel hub manufacturing, the wear resistance and elastic modulus of steel casting is crucial. By adjusting the cooling rate and alloy composition, the microstructure of steel casting can be optimized to meet these requirements.
In one case study, the cooling rate was reduced to 50 °C/s, and appropriate amounts of vanadium and niobium elements were added. This resulted in a significant refinement of grain structure, with an average grain size reduced from 200 μm to 50 μm. Consequently, the yield strength of the steel casting increased by approximately 20% to 1000 MPa, and its impact toughness improved by nearly 30% to 200 J/cm². These results demonstrate the effectiveness of microstructure control techniques in enhancing the quality of steel casting.
4.2 Application of Microstructure Control Techniques in Different Industries
Microstructure control techniques have been widely applied in various industries to improve the performance of steel casting.
Automotive Industry: In the automotive industry, steel casting is used in engine blocks, cylinder heads, and transmission cases. By precisely controlling the cooling rate and alloy composition, steel casting with excellent fatigue resistance and thermal conductivity can be produced.
Aerospace Industry: In the aerospace industry, steel casting is used in aircraft landing gears, engine components, and structural parts. By optimizing the microstructure, steel casting with high strength, toughness, and corrosion resistance can be achieved.
Power Generation Industry: In the power generation industry, steel casting is used in turbines, generators, and boilers. By controlling the microstructure, steel casting with good creep resistance and thermal stability can be obtained.
4.3 Improvement in Product Quality through Microstructure Control Techniques
Microstructure control techniques have a significant impact on the quality of steel casting. In one study, numerical simulation was used to optimize the cooling rate and alloy composition for a large steel casting. As a result, the internal defects of the casting were reduced by half, and its durability was increased by approximately 40%.
In another study, the microstructure of a high-manganese alloy was adjusted to maintain its high ductility while significantly increasing its hardness by 15% to HB500. These improvements demonstrate that microstructure control techniques can enhance the mechanical properties and service life of steel castings, thereby improving overall product quality.
5. Future Development of Microstructure Control Techniques for Steel Casting
5.1 Development of Novel Steel Casting Materials and Microstructure Control
The development of new steel casting materials with enhanced properties is an important direction for future research. By finely tuning the chemical composition and microstructure, significant improvements in performance can be achieved.
Nano-Alloyed Steels: The introduction of nano-sized rare earth elements into steel can significantly refine grain structure and improve hardness and toughness. For example, incorporating 0.03% rare earth metals into steel has been shown to reduce grain size from 150 μm to 10 μm, thereby enhancing resistance to deformation and impact.
Heterogeneous Microstructure Steels: Steels with heterogeneous microstructures, such as bimodal and gradient structures, exhibit superior mechanical properties compared to traditional steels. Future research should focus on the development of novel processing techniques for producing heterogeneous microstructure steels.
5.2 Application of High-Performance Computing in Microstructure Control
High-performance computing (HPC) is becoming an increasingly important tool for material design and process optimization. By leveraging HPC, complex phenomena such as heat transfer and mass transfer during steel casting solidification can be simulated with high accuracy.
Computational Fluid Dynamics (CFD): CFD can be used to simulate the flow of molten steel and the distribution of alloy elements during the solidification process. This information can be used to optimize the gating system and riser design, thereby improving the microstructure and properties of steel casting.
Machine Learning and Artificial Intelligence: Machine learning and artificial intelligence algorithms can be used to optimize simulation models and predict microstructure evolution more accurately. By integrating HPC with AI, a new paradigm for material design and process optimization can be established.
5.3 Trend towards Environmentally Friendly Steel Casting Processes
The development of environmentally friendly steel casting processes is an important response to the global call for sustainable development. Traditional steel casting processes often involve high energy consumption and the generation of harmful emissions. Therefore, research efforts should focus on reducing environmental impact while maintaining or improving product quality.
Electromagnetic Stirring: Electromagnetic stirring can be used to refine grain structure and reduce defects in steel casting. Compared to chemical refining processes, electromagnetic stirring consumes less energy and generates fewer emissions.
Green Casting Materials: The development of green casting materials, such as biodegradable binders and renewable energy sources, is another promising direction. By incorporating these materials into the casting process, the environmental impact can be significantly reduced.
Waste Reduction and Recycling: Improving production processes to reduce waste and enabling the recycling of scrap materials are essential for achieving sustainability in steel casting manufacturing.
6. Conclusion
This paper provides a comprehensive overview of microstructure control techniques during the solidification process of steel casting. By examining the thermodynamic principles, heat and mass transfer phenomena, and the kinetic mechanism of microstructure formation, the influence of key factors such as cooling rate and alloy composition on microstructure is discussed. Numerical simulation techniques for predicting and optimizing microstructure are introduced, and practical application cases are presented to illustrate the effectiveness of microstructure control techniques in improving product quality.
The future development of microstructure control techniques for steel casting lies in the development of novel steel casting materials, the application of high-performance computing, and the pursuit of environmentally friendly steel casting processes. By integrating these advances, steel casting manufacturers can achieve better product performance and quality while contributing to sustainable development.
