In the realm of advanced casting techniques, lost foam casting, commonly known as EPC (Expanded Polystyrene Casting), stands out for its ability to produce intricate components with high precision and minimal post-processing. As someone deeply involved in the development and implementation of EPC systems, I have witnessed firsthand how the proper selection and integration of equipment can dramatically enhance casting quality and efficiency. This article delves into the core equipment and process tools essential for lost foam casting, covering vibration compaction systems, sand handling units, vacuum negative pressure setups, and more. I will employ tables and mathematical formulas to encapsulate key parameters and calculations, ensuring a thorough understanding of EPC methodologies. Throughout this discussion, I will emphasize the critical role of lost foam casting in modern manufacturing, repeatedly highlighting EPC’s unique advantages.
The vibration compaction equipment in lost foam casting is fundamental to achieving uniform sand density around foam patterns. I have designed and optimized various vibratory tables, including one-dimensional, two-dimensional, and three-dimensional systems, which are categorized by control methods such as standard, frequency-adjustable, and positioning types, as well as vibration directions like vertical, horizontal, and circumferential. These systems ensure that dry sand is tightly packed to support the foam during EPC processes. The vibration frequency and force can be tailored using formulas like the natural frequency equation: $$ f = \frac{1}{2\pi} \sqrt{\frac{k}{m}} $$ where \( f \) is the frequency in Hz, \( k \) is the stiffness constant, and \( m \) is the mass of the vibrating system. This optimization is vital for maintaining consistency in lost foam casting operations. Table 1 summarizes the typical vibration equipment used in EPC, based on my extensive experience.
| Equipment Type | Vibration Dimensions | Control Method | Max Force (kN) | Applications in EPC |
|---|---|---|---|---|
| One-dimensional Table | Single axis | Standard | 10-50 | Simple pattern geometries |
| Two-dimensional Table | Two axes | Frequency-adjustable | 20-80 | Medium complexity patterns |
| Three-dimensional Table | Three axes | Positioning | 30-100 | Complex and large patterns |
Sand feeding systems in lost foam casting must deliver dry sand uniformly and efficiently to prevent defects in EPC. I have evaluated devices like quantitative sand feeders, rapid rain sand feeders, spiral sand feeders, flexible hose feeders, and rotatable rigid feeders. Each has its merits and limitations; for instance, rapid rain feeders offer high uniformity but may generate dust, while spiral feeders provide flexibility but lower efficiency. The sand flow rate can be modeled using the equation: $$ \dot{m} = A \cdot v \cdot \rho $$ where \( \dot{m} \) is the mass flow rate in kg/s, \( A \) is the cross-sectional area, \( v \) is the velocity, and \( \rho \) is the sand density. This is crucial for automating lost foam casting lines. Table 2 compares these sand feeding devices, reflecting my practical insights into EPC applications.
| Device Type | Advantages | Disadvantages | Typical Capacity (t/h) |
|---|---|---|---|
| Quantitative Feeder | Precise sand control | Higher initial cost | 5-20 |
| Rapid Rain Feeder | Uniform distribution | Potential dust issues | 10-30 |
| Spiral Feeder | Flexible positioning | Lower uniformity | 3-15 |
| Flexible Hose Feeder | Simple and adaptable | Slower feeding speed | 2-10 |
Vacuum negative pressure sandboxes are indispensable in lost foam casting for maintaining sand integrity and facilitating foam decomposition. I have designed these sandboxes with considerations for sand thickness—typically 150-200 mm at the bottom, 100 mm on sides, and 75-150 mm on top—to ensure proper pattern support in EPC. The venting area must align with pump capacity, using holes of 10-16 mm diameter covered by 100-mesh stainless steel screens to balance airflow and sand retention. The pressure drop across the sandbox can be estimated with: $$ \Delta P = \frac{\mu \cdot L \cdot v}{k} $$ where \( \Delta P \) is the pressure difference, \( \mu \) is the dynamic viscosity, \( L \) is the flow path length, \( v \) is the velocity, and \( k \) is the permeability. This equation helps optimize vacuum systems for lost foam casting.
The vacuum system in lost foam casting is critical for evacuating gases generated during foam decomposition in EPC. I have selected vacuum pumps based on factors like sandbox volume, gas evolution from EPS patterns, and production rates. The pumping capacity can be derived from: $$ Q = \frac{V \cdot \Delta P}{t \cdot \eta} $$ where \( Q \) is the pumping capacity in m³/h, \( V \) is the sandbox volume, \( \Delta P \) is the pressure drop, \( t \) is time, and \( \eta \) is efficiency. Water-ring vacuum pumps, such as the SK and 2BE series, are commonly used in EPC due to their reliability. Table 3 provides a performance comparison, drawn from my evaluations in lost foam casting projects.
| Pump Series | Max Vacuum (kPa) | Pumping Capacity (m³/h) | Power (kW) | EPC Suitability |
|---|---|---|---|---|
| SK Series | -80 to -90 | 30-120 | 5.5-30 | Small to medium scales |
| 2BE Series | -90 to -98 | 50-200 | 4-25 | High-volume EPC lines |
Proper installation and operation of vacuum pumps are essential to avoid common issues in lost foam casting, such as sand collapse or casting defects in EPC. I have compiled Table 4 to outline typical problems and solutions, ensuring reliable performance in EPC environments.
| Issue | Possible Causes | Solutions |
|---|---|---|
| Insufficient Vacuum | Leaks, clogged screens | Seal connections, clean screens |
| Pump Overload | High gas load, low water flow | Adjust water supply, check gas evolution |
| Reduced Efficiency | Worn components, improper alignment | Replace parts, realign drive systems |

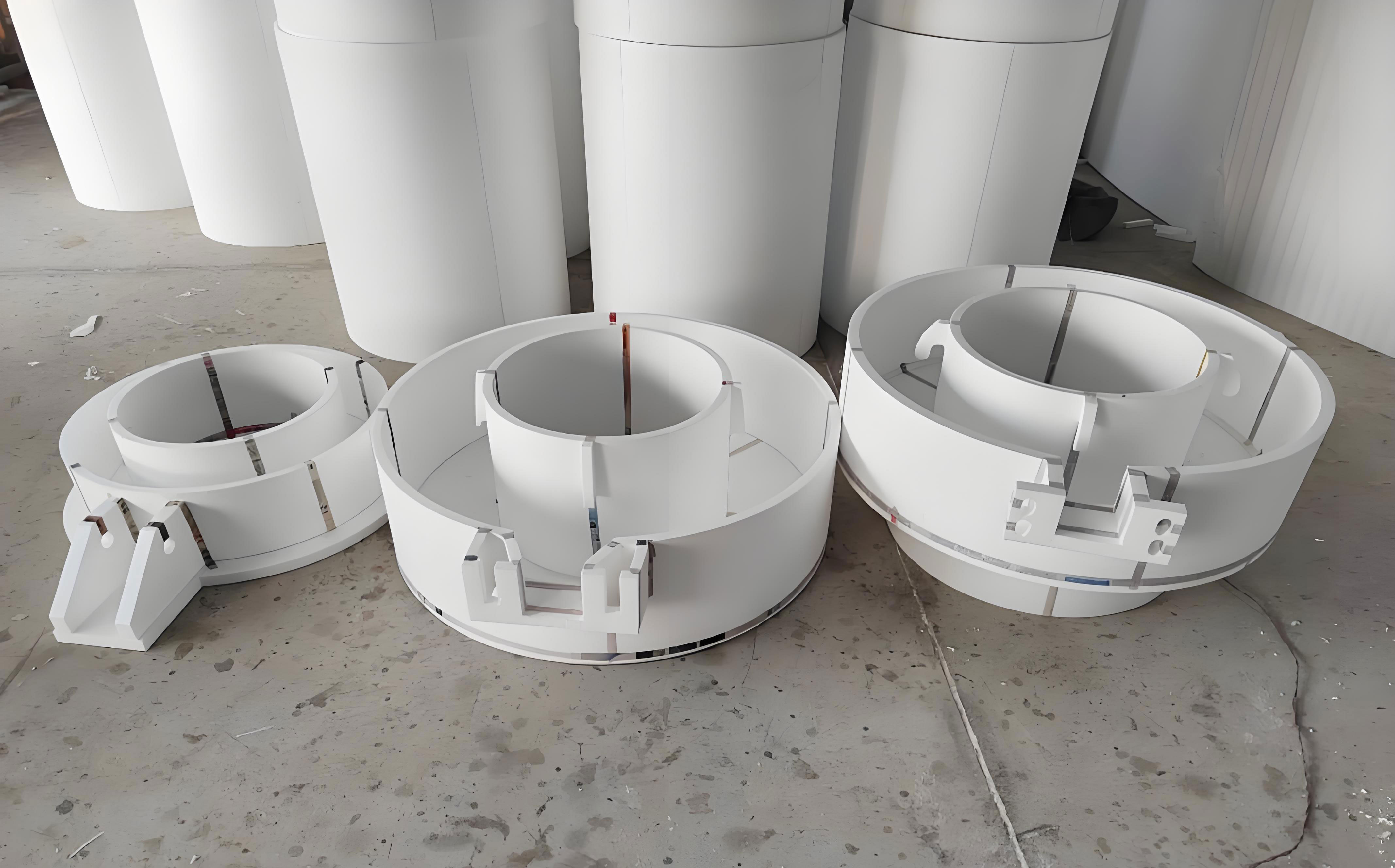

Sand handling systems in lost foam casting are pivotal for recycling dry sand, maintaining temperature, and ensuring cleanliness in EPC. I have implemented comprehensive processes involving screening, magnetic separation, cooling, and storage. The overall efficiency can be expressed as: $$ \eta_{\text{system}} = \frac{\text{Useful sand output}}{\text{Total sand input}} \times 100\% $$ which highlights the importance of minimizing losses in lost foam casting. A typical sand handling flowchart includes steps from shaking out to cooling and reuse, ensuring that sand properties remain optimal for EPC. Here is an illustrative image of a lost foam casting setup:
Key equipment in sand handling for lost foam casting includes vibration screening machines, bucket elevators, pneumatic conveyors, and cooling devices like fluidized beds or滚筒 coolers. I have designed these to handle capacities ranging from 5 to 40 t/h, with power requirements tailored to EPC production scales. The heat removal during cooling can be calculated using: $$ Q_{\text{removed}} = m \cdot c_p \cdot (T_{\text{in}} – T_{\text{out}}) $$ where \( m \) is the sand mass flow rate, \( c_p \) is the specific heat capacity, and \( T_{\text{in}} \) and \( T_{\text{out}} \) are inlet and outlet temperatures. This ensures sand temperature stays below 50°C for consistent EPC performance. Table 5 details common sand handling equipment specifications based on my work in lost foam casting.
| Equipment | Function | Capacity (t/h) | Power (kW) | Key Parameters |
|---|---|---|---|---|
| Vibration Screen | Screening and conveying | 5-40 | 1.5-5.5 | Mesh size: 6-12 mm |
| Bucket Elevator | Vertical transport | 10-50 | 3-15 | Lift height: up to 20 m |
| Pneumatic Conveyor | Long-distance transport | 5-20 | 7.5-30 | Pressure: 0.2-0.6 MPa |
| Fluidized Bed Cooler | Cooling and dedusting | 10-30 | 15-45 | Cooling rate: 5-10°C/min |
In lost foam casting, the sand cooling process is enhanced by devices like water-cooled fluidized beds or滚筒 coolers, which I have optimized for EPC applications. The cooling efficiency can be further analyzed with the Nusselt number for heat transfer: $$ Nu = \frac{h \cdot L}{k} $$ where \( h \) is the heat transfer coefficient, \( L \) is the characteristic length, and \( k \) is the thermal conductivity. This mathematical approach ensures that sand retains its properties for repeated use in lost foam casting.
Decoring or sand removal in lost foam casting involves equipment such as hydraulic tilting machines or self-draining sandboxes, which I have integrated into EPC lines for efficiency. The force required for tilting can be estimated with: $$ F = m \cdot g \cdot \sin(\theta) $$ where \( F \) is the force, \( m \) is the mass of the sandbox, \( g \) is gravity, and \( \theta \) is the tilt angle. This minimizes manual labor and enhances safety in lost foam casting operations. Automated systems in EPC often use PLC controls to synchronize decoring with other processes, ensuring continuous production flow.
Dust control in lost foam casting is achieved through baghouse dust collectors, which I have specified for EPC facilities to maintain air quality. The collection efficiency can be modeled as: $$ \eta_{\text{dust}} = 1 – e^{-k \cdot A \cdot v} $$ where \( k \) is a constant, \( A \) is the filter area, and \( v \) is the face velocity. This equation helps in selecting appropriate除尘 equipment for lost foam casting environments, reducing environmental impact.
Electrical automation in lost foam casting, particularly in EPC, relies on PLC systems to coordinate equipment like vibratory tables and sand feeders. I have programmed these systems to include interlocks and alarms, using formulas for response time: $$ t_{\text{response}} = \frac{1}{f_{\text{scan}}} $$ where \( f_{\text{scan}} \) is the PLC scan frequency. This ensures real-time control and fault detection in lost foam casting lines, improving reliability and productivity.
In summary, the equipment and process tools for lost foam casting, especially in EPC, require meticulous design and integration to achieve high-quality outcomes. From vibration compaction and vacuum systems to sand handling and automation, each element plays a crucial role. I have presented tables and formulas to encapsulate technical details, underscoring the importance of optimized parameters in lost foam casting. As EPC technology advances, continued innovation in these areas will further elevate the efficiency and sustainability of lost foam casting in global manufacturing.
