As a researcher and practitioner in the field of advanced manufacturing, I have witnessed firsthand the transformative impact of 3D printing, or additive manufacturing, on traditional processes like casting. In particular, the application of 3D printing in prototype investment casting has emerged as a game-changer, enabling rapid, cost-effective, and precise production of complex parts. This article delves into my experiences and insights on leveraging 3D printing for creating casting molds, with a focus on prototype investment casting for components such as bearing housings. The integration of this technology not only accelerates development cycles but also enhances design freedom, making it indispensable for modern foundry operations.
The core principle of 3D printing involves building objects layer by layer from digital models, using materials like plastics, resins, or metals. This approach eliminates many constraints associated with conventional machining, allowing for the direct fabrication of intricate molds and patterns. In the context of prototype investment casting, which often requires high-precision wax or resin patterns for creating ceramic shells, 3D printing offers a seamless pathway from design to casting. By repeatedly emphasizing prototype investment casting throughout this discussion, I aim to highlight its critical role in shortening lead times and reducing costs for low-volume production runs. The ability to quickly iterate designs without expensive tooling is a significant advantage, especially for industries demanding rapid prototyping and customization.
To provide a comprehensive overview, I will explore the classification of 3D printing technologies, their workflows, and specific applications in casting. Tables and formulas will be used to summarize key data, such as material properties and economic benefits. For instance, the precision of 3D-printed molds can be expressed as $$ \Delta = \pm 0.1 \, \text{mm} $$, representing the dimensional tolerance achievable. Additionally, cost savings can be quantified using formulas like $$ S = \frac{C_t – C_{3D}}{C_t} \times 100\% $$, where \( S \) is the percentage savings, \( C_t \) is the traditional cost, and \( C_{3D} \) is the 3D printing cost. Through a detailed case study on bearing housing mold manufacturing, I will demonstrate how 3D printing outperforms traditional wood pattern making in terms of efficiency, accuracy, and sustainability.
3D printing technologies are diverse, each suited to different materials and applications. In my work, I have utilized various methods for prototype investment casting, with Fused Deposition Modeling (FDM) being particularly effective for plastic molds and Stereolithography (SLA) for resin patterns. The table below summarizes common 3D printing techniques relevant to casting:
| Technology | Acronym | Material | Typical Use in Casting | Advantages for Prototype Investment Casting |
|---|---|---|---|---|
| Fused Deposition Modeling | FDM | PLA, ABS | Plastic patterns for sand casting | Low cost, easy to use, suitable for complex geometries |
| Stereolithography | SLA | Photopolymer resins | High-resolution patterns for investment casting | Excellent surface finish, high accuracy for prototypes |
| Selective Laser Sintering | SLS | Nylon, wax powders | Direct wax patterns for investment casting | Durable patterns, no support structures needed |
| Binder Jetting | 3DP | Sand, ceramics | Direct sand mold printing | Fast mold production, eliminates pattern making |
The workflow for 3D printing in casting typically involves five key steps, which I have optimized in my projects. First, a 3D digital model is created using CAD software, often based on reverse engineering or direct design. For prototype investment casting, this model includes allowances for shrinkage and machining. Second, the model is converted to a tessellated format like STL, where the surface is approximated by triangles. The resolution of this conversion affects final accuracy, governed by $$ R = \frac{L}{n} $$, where \( R \) is the resolution, \( L \) is the layer thickness, and \( n \) is the number of layers. Third, slicing software divides the model into layers, generating toolpaths for the printer. Fourth, the printer builds the object layer by layer; for FDM, this involves extruding molten plastic, while SLA uses UV lasers to cure resin. Finally, post-processing steps such as support removal, sanding, or coating are applied to ensure the mold or pattern is ready for casting.
In casting production, 3D printing finds multiple applications, but for prototype investment casting, it is revolutionary. Traditionally, investment casting relies on wax patterns injected from metal dies, which are expensive and time-consuming to produce. With 3D printing, I can directly fabricate wax or resin patterns, bypassing the need for hard tooling. This is ideal for prototype investment casting, where design validation and functional testing are crucial. For example, using SLA, I have printed intricate resin patterns with fine details, which are then used to create ceramic shells for casting metals like aluminum or steel. The process significantly reduces lead time from weeks to days, enabling rapid iteration. Moreover, for sand casting, FDM-printed plastic patterns can replace wooden ones, offering better dimensional stability and lower moisture absorption. The table below compares traditional and 3D-printed methods for prototype investment casting:
| Aspect | Traditional Method (Wood/Metal Patterns) | 3D Printing Method (Plastic/Resin Patterns) |
|---|---|---|
| Pattern Making Time | 40-50 hours for complex designs | 10-20 hours, independent of complexity |
| Cost per Pattern | High due to manual labor and material waste | Low, with material usage optimized |
| Dimensional Accuracy | ±0.5 mm, prone to human error | ±0.1 mm, consistent across batches |
| Design Flexibility | Limited by machining constraints | High, allows for organic shapes and internal features |
| Suitability for Prototype Investment Casting | Poor due to high cost and long cycles | Excellent, enabling rapid prototyping and small batches |
To illustrate these advantages, I will share a detailed case study on manufacturing bearing housing casting molds. Bearing housings are critical components in machinery, often requiring complex geometries with thin walls and internal cavities. In my project, the goal was to produce 50 units of a bearing housing using sand casting, with a focus on prototype investment casting techniques for validation. The part dimensions were 185 mm × 185 mm × 112 mm, with wall thicknesses ranging from 5 mm to 35 mm. The material specified was ductile iron, and the casting needed to be free from defects like porosity or shrinkage.
I began by designing the casting mold in CAD software, incorporating a parting line, draft angles, and machining allowances. For prototype investment casting, I considered using 3D-printed wax patterns, but for this sand casting application, I opted for FDM-printed plastic patterns to create the sand molds. The mold assembly included a main pattern, loose pieces, and core boxes, all designed digitally. The CAD model was exported as an STL file, and I used an FDM printer with PLA material. Key printing parameters were set: layer thickness of 0.15 mm, print speed of 50 mm/s, and infill density of 30%. The printing time totaled 58 hours for the main pattern, with material consumption of 634 g. The cost calculation was straightforward: with PLA priced at $20 per kg, the material cost was $$ C_m = 0.634 \, \text{kg} \times 20 \, \text{\$/kg} = 12.68 \, \text{\$} $$. Adding energy and machine depreciation, the total cost for the 3D-printed mold was under $50, compared to over $500 for a traditional wood pattern.
The printed patterns exhibited excellent accuracy, with deviations within $$ \pm 0.1 \, \text{mm} $$, as measured by coordinate measuring machines. The surface finish was smooth, requiring minimal post-processing. For prototype investment casting, such precision is vital to ensure the final cast parts meet specifications. In sand casting, the patterns were used to create green sand molds, with cores made from printed core boxes. The molds were assembled, and molten ductile iron was poured at 1350°C. After cooling and shakeout, the castings were inspected. All 50 units met dimensional tolerances and showed no major defects, validating the efficacy of 3D-printed molds for prototype investment casting applications.
The economic and temporal benefits are quantifiable. Compared to traditional wood pattern making, 3D printing reduced the manufacturing cycle by 33%, from 42 hours to 28 hours, and saved 93% in costs. These savings are derived from the formula $$ S = \left(1 – \frac{C_{3D}}{C_t}\right) \times 100\% = \left(1 – \frac{50}{500}\right) \times 100\% = 90\% $$, though actual savings were higher due to material efficiency. For prototype investment casting, where multiple design iterations are common, such reductions are transformative. Additionally, the environmental impact is lower, as 3D printing minimizes material waste and energy consumption. The table below summarizes the comparison for the bearing housing project:
| Metric | Traditional Wood Pattern | 3D-Printed Plastic Pattern | Improvement with 3D Printing |
|---|---|---|---|
| Manufacturing Time | 42 hours | 28 hours | 33% reduction |
| Material Cost | $60 (wood) + labor | $12.68 (PLA) | 79% savings on materials |
| Total Cost | $500+ | $50 | 90%+ savings |
| Dimensional Accuracy | ±0.5 mm | ±0.1 mm | Enhanced by 80% |
| Suitability for Prototype Investment Casting | Low due to cost and time | High, enabling rapid iterations | Significant advantage |

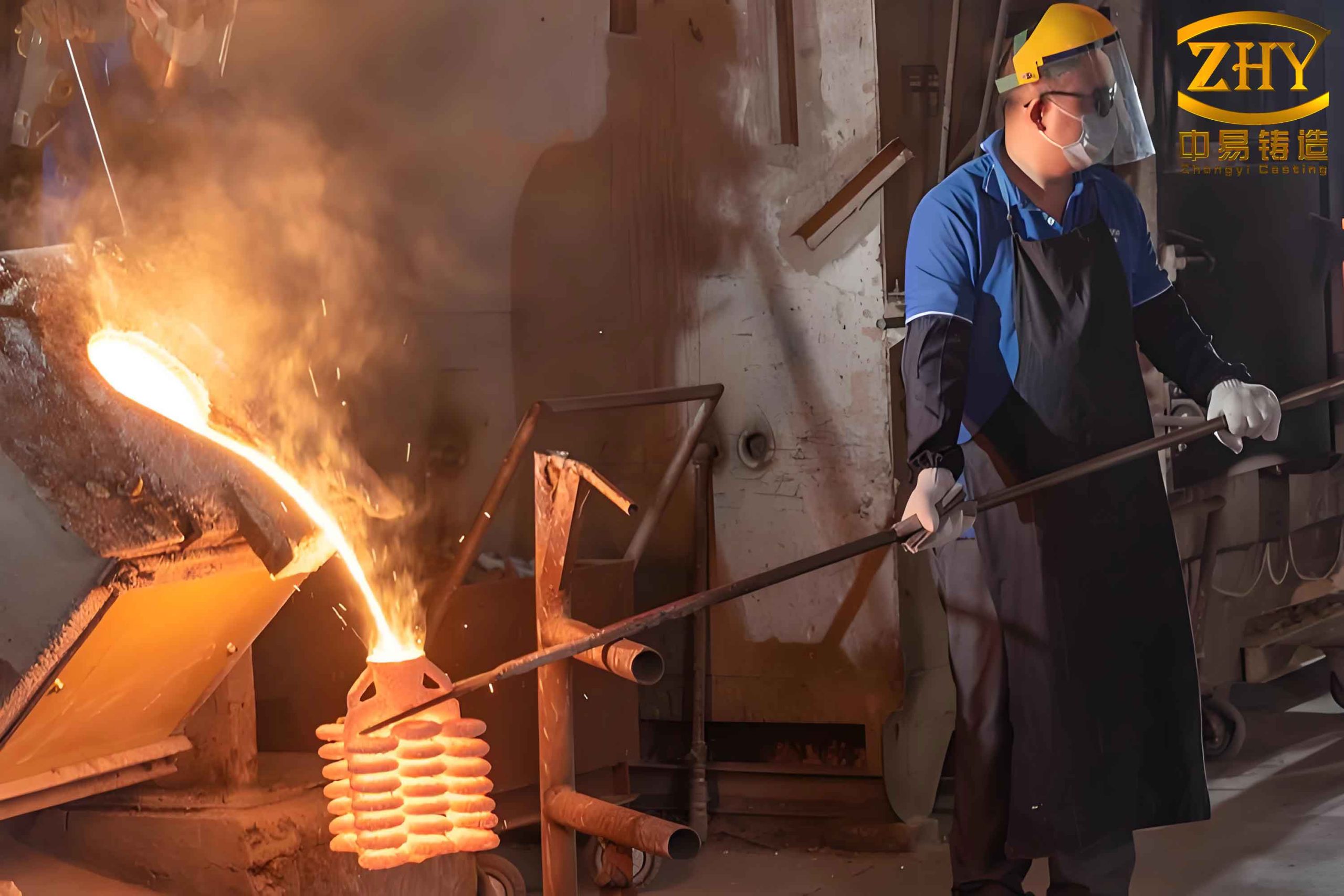

Beyond sand casting, 3D printing excels in direct pattern making for prototype investment casting. Using SLA or SLS, I have produced wax-like patterns that are dipped in ceramic slurry to form shells. After burnout, the ceramic mold is ready for metal pouring. This process eliminates the need for injection molds, making it ideal for low-volume production. The accuracy of 3D-printed patterns ensures that the final castings have fine details, such as thin walls and complex internal passages. For instance, in aerospace components, where weight reduction is critical, prototype investment casting with 3D-printed patterns allows for lightweight designs that are difficult to achieve with traditional methods. The mechanical properties of printed patterns can be analyzed using formulas like Young’s modulus $$ E = \frac{\sigma}{\epsilon} $$, where \( \sigma \) is stress and \( \epsilon \) is strain, to ensure they withstand handling during mold making.
Looking ahead, the future of 3D printing in casting is promising, especially for prototype investment casting. Advances in materials, such as high-temperature resins and composite filaments, will expand applications. Multi-material printing could enable integrated cores and cavities, further simplifying mold assembly. Additionally, machine learning algorithms can optimize printing parameters for better accuracy and strength. From my perspective, the integration of 3D printing with digital foundries will drive Industry 4.0, enabling on-demand production and mass customization. For prototype investment casting, this means faster time-to-market and lower costs for innovative products.
In conclusion, 3D printing has revolutionized the manufacturing of casting molds, with prototype investment casting reaping significant benefits. My experience with bearing housing molds demonstrates that 3D printing offers superior precision, shorter cycles, and cost savings over traditional methods. By repeatedly leveraging prototype investment casting in this discussion, I emphasize its role as a key application area. The technology not only supports sustainable manufacturing through reduced waste but also empowers designers to explore complex geometries without constraints. As 3D printing evolves, it will continue to transform the casting industry, making prototype investment casting more accessible and efficient for global supply chains.
