In my experience with automotive manufacturing, the use of lost foam casting, also known as expendable pattern casting (EPC), has become increasingly prevalent for producing complex components like body stamping dies. However, one persistent challenge in high-grade ductile iron castings, such as those with QT700 and above specifications, is the tendency to form shrinkage defects, particularly in thick sections. These defects, including macroshrinkage and microshrinkage, can compromise the integrity and fatigue strength of critical surfaces, such as the forming faces of dies. As a casting engineer, I have focused on leveraging numerical simulation to predict and mitigate these issues, ensuring higher quality outcomes in EPC processes. This article delves into the application of simulation tools to address shrinkage in lost foam casting, with an emphasis on practical strategies like chill placement, and incorporates mathematical models to elucidate the underlying phenomena.

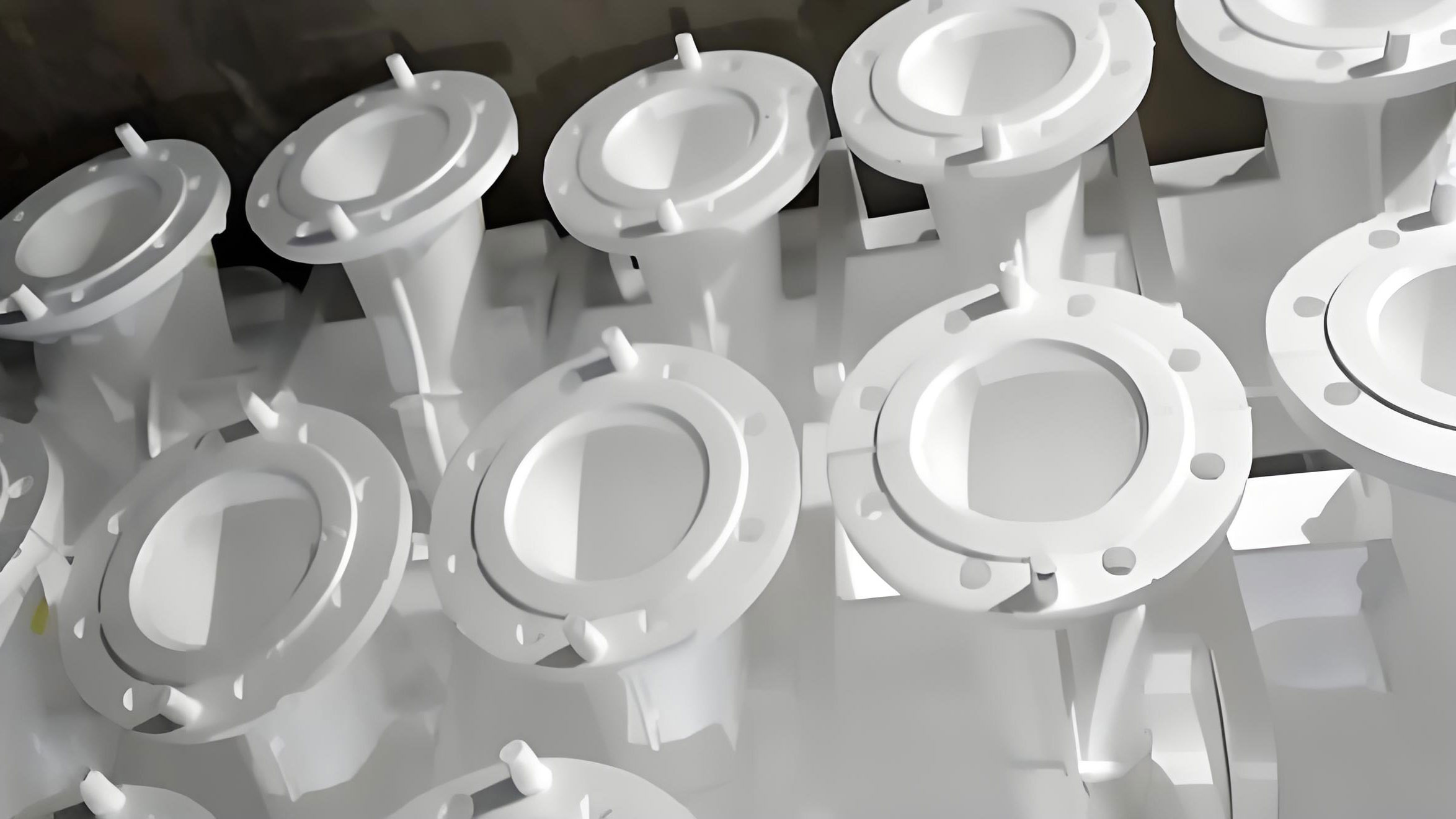

The lost foam casting process involves creating a foam pattern that is embedded in unbonded sand, with molten metal poured to replace the pattern via decomposition. While EPC offers advantages like reduced machining and complex geometries, it is prone to defects due to its characteristic mushy solidification behavior in ductile iron. Shrinkage defects arise from inadequate feeding during solidification, where liquid metal cannot compensate for volumetric contraction. In automotive die production, this is critical because surface shrinkage after machining can lead to premature failure in service. Through simulation, I aim to optimize cooling conditions and minimize such defects, thereby enhancing the reliability of components produced via lost foam casting.
To understand shrinkage formation in lost foam casting, it is essential to model the thermal and solidification dynamics. The governing equation for heat transfer during casting solidification is derived from Fourier’s law and conservation of energy. The transient heat conduction equation can be expressed as:
$$ \frac{\partial T}{\partial t} = \alpha \nabla^2 T + \frac{\dot{q}}{\rho c_p} $$
where \( T \) is temperature, \( t \) is time, \( \alpha \) is the thermal diffusivity given by \( \alpha = \frac{k}{\rho c_p} \), \( k \) is thermal conductivity, \( \rho \) is density, \( c_p \) is specific heat capacity, and \( \dot{q} \) represents the latent heat release due to phase change. In EPC processes, the latent heat term is crucial for modeling the mushy zone in ductile iron, where solid fraction \( f_s \) evolves with temperature. A common approach uses the lever rule or Scheil equation for microsegregation, but for macroscopic shrinkage prediction, I often employ a porosity model based on the Niyama criterion, which relates thermal gradients and cooling rates to shrinkage susceptibility:
$$ G / \sqrt{\dot{T}} \geq C $$
Here, \( G \) is the temperature gradient, \( \dot{T} \) is the cooling rate, and \( C \) is a material-dependent constant. Values below this threshold indicate a high risk of shrinkage porosity in lost foam casting applications.
In my simulations, I utilize finite element analysis (FEA) software to discretize the casting geometry and solve these equations numerically. For instance, in a typical automotive die produced via EPC, such as a back door concave die, the model is imported from CAD software and meshed into millions of elements to capture detailed thermal profiles. The material properties for high-grade ductile iron, like GGG70L, are defined with compositions that influence solidification behavior. Below is a table summarizing key parameters used in my simulations for lost foam casting:
| Parameter | Value | Unit |
|---|---|---|
| C content | 3.8 | % |
| Si content | 2.2 | % |
| Mn content | 0.5 | % |
| Cu content | 0.9 | % |
| Ni content | 0.85 | % |
| Mo content | 0.55 | % |
| Cr content | 0.3 | % |
| Pouring temperature | 1420 | °C |
| Mold initial temperature | 20 | °C |
| Sand type | Furan resin | – |
These parameters are critical for accurate simulation of the EPC process, as they affect the cooling rates and solidification sequences that lead to shrinkage. For example, the high alloy content in ductile iron promotes a wide mushy zone, increasing the likelihood of shrinkage defects in thick sections of lost foam casting molds.
During the filling and solidification stages in lost foam casting, the simulation tracks temperature distribution over time. In one case study, I modeled a large automotive die measuring approximately 3000 mm × 5000 mm × 550 mm, weighing 14 tons. The mesh consisted of over 23 million elements to ensure resolution of thermal gradients. The results showed that thinner ribs solidified first, while thicker sections, such as the die face, remained liquid longer, creating hot spots prone to shrinkage. The simulation output included shrinkage percentage maps, which highlighted areas with over 35% shrinkage risk, primarily at junctions and thick regions. This aligns with the mushy solidification nature of ductile iron in EPC, where interdendritic feeding is insufficient.
To quantify the effectiveness of simulation in lost foam casting, I compared different cooling scenarios. Without external chills, the shrinkage defects were predicted to be within 13 mm of the machined surface, posing a significant risk. However, by incorporating chills—typically made of steel with dimensions like 80 mm × 80 mm × 200 mm—the cooling conditions were altered, shifting the shrinkage deeper into the non-critical zones. The modified thermal profile can be described by enhancing the boundary conditions in the heat equation. For a chill placed on the mold surface, the heat flux \( q” \) at the interface is given by:
$$ q” = h (T_{\text{casting}} – T_{\text{chill}}) $$
where \( h \) is the heat transfer coefficient, which is higher for metal chills compared to sand. This accelerates local solidification, reducing the shrinkage percentage to below 15% and increasing the distance from the surface to about 30 mm. The table below contrasts the simulation outcomes for lost foam casting with and without chills:
| Condition | Shrinkage Percentage | Distance from Surface (mm) |
|---|---|---|
| No chill | >35% | 13 |
| With chill | <15% | 30 |
This demonstrates how simulation-guided design in EPC can proactively address shrinkage by optimizing chill placement, a strategy I have validated in multiple production runs.
In practical applications of lost foam casting, the simulation results have been instrumental in reducing defects. For instance, in automotive die production, I have observed that areas with weight-reduction holes and thin ribs cool rapidly, while thick sections act as thermal centers. By using simulation to identify these zones, we can position chills precisely, avoiding post-machining shrinkage. In one real-world example, adding internal chills of Φ16 mm diameter in critical holes eliminated shrinkage defects entirely, consistent with the predictions. The correlation between simulation and actual castings in EPC processes underscores the reliability of these tools for industrial scale-up.
Moreover, the integration of advanced models in lost foam casting simulation accounts for factors like foam decomposition and gas evolution, which are unique to EPC. The energy equation can be extended to include the decomposition kinetics:
$$ \rho c_p \frac{\partial T}{\partial t} = \nabla \cdot (k \nabla T) + \rho L \frac{\partial f_s}{\partial t} + \dot{q}_{\text{decomp}} $$
where \( L \) is latent heat of fusion, and \( \dot{q}_{\text{decomp}} \) represents the heat sink due to foam vaporization. This comprehensive approach enhances the accuracy of shrinkage prediction in lost foam casting, making it a cornerstone of modern foundry practices.
Throughout my work, I have found that repeated iterations using simulation software allow for fine-tuning of process parameters in EPC, such as pouring temperature and chill design. For example, varying the chill material or size can be simulated to achieve optimal results. The table below summarizes key variables and their impact on shrinkage in lost foam casting:
| Variable | Effect on Shrinkage | Recommended Range for EPC |
|---|---|---|
| Pouring temperature | Higher temperature increases shrinkage risk | 1380–1420 °C |
| Chill size | Larger chills enhance cooling, reduce shrinkage | 50–100 mm cross-section |
| Sand properties | Higher permeability reduces gas defects | AFS 40–60 |
| Alloy composition | Elements like Mo and Cr affect solidification | As per GGG70L specs |
By leveraging such data, lost foam casting processes can be optimized to minimize defects, saving time and costs in automotive die production.
In conclusion, the application of numerical simulation in lost foam casting has revolutionized how we tackle shrinkage defects in high-grade ductile iron castings. Through detailed thermal and solidification modeling, I have demonstrated that simulation accurately predicts shrinkage locations and enables proactive measures like chill placement. The use of equations such as the heat conduction model and Niyama criterion provides a scientific basis for these predictions, while tables of material and process parameters offer practical guidelines. In EPC, this approach not only improves product quality but also enhances the sustainability of manufacturing by reducing scrap. As simulation technologies evolve, their integration into lost foam casting will continue to drive innovations, ensuring that EPC remains a viable method for producing complex automotive components with minimal defects.
Overall, my experiences underscore the transformative power of simulation in lost foam casting, where EPC processes benefit from virtual prototyping and data-driven decisions. By continually refining these models and incorporating real-world feedback, we can achieve higher efficiency and reliability in the casting industry, making lost foam casting a cornerstone of advanced manufacturing.
