Ugnx8 0 software to model the three-dimensional model of sand casting engine cylinder head. UG NX is a new generation digital product developed by Siemens PLM Software in the United States. The most widely used and fully relevant integrated CAD / CAM / CAE application suite in global enterprises. UG NX provides a complete suite of process automation tools that enable companies to collect and reuse product and process knowledge, thereby promoting the use of enterprise best practices. It also includes the most powerful and extensive product design application module in the world.

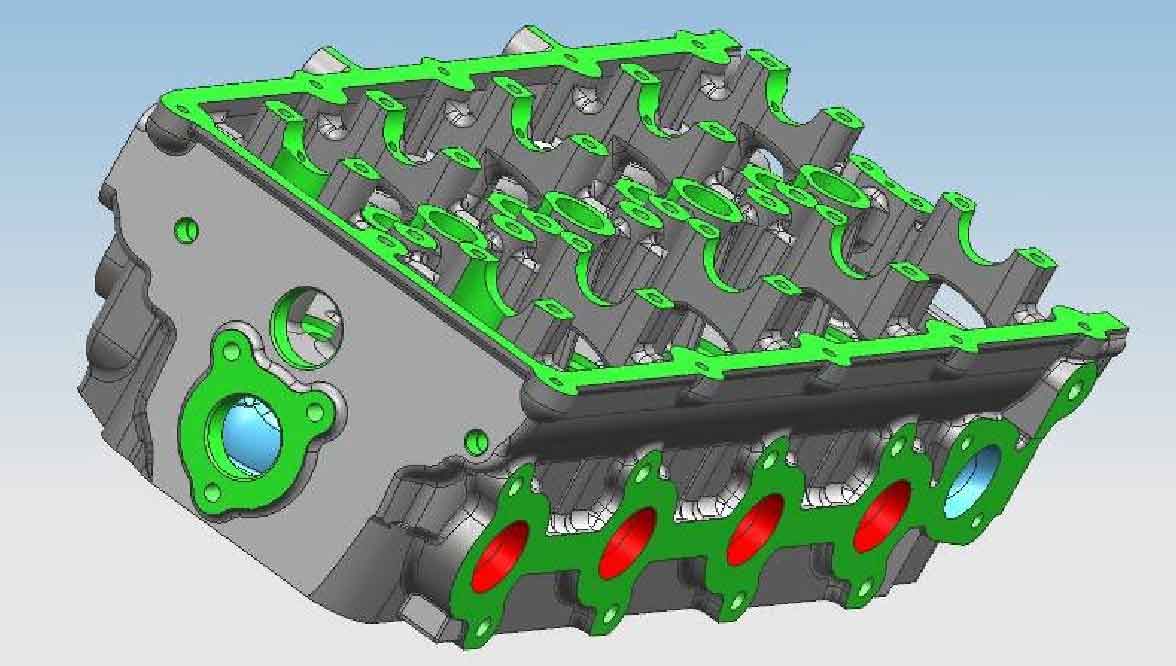

At the same time, UG NX has high-performance mechanical design and drawing functions, which provides high performance and flexibility for manufacturing design to meet the needs of customers to design any complex products. Based on the above advantages, UG nx8 is selected for sand casting engine cylinder head 0 for 3D modeling. The 3D model of the cylinder head created by it is shown in the figure.
According to the sand mold casting process CAD system developed by the laboratory, the casting process design is carried out. It is developed by using Pro / E as the platform, VC + + 2005, Microsoft Access2003 and function library Pro / Toolkit as the tools, and using key technologies such as interface, ADO, menu, parametric design, size drive and so on. Rapid sand casting includes: sand casting process analysis, parting surface setting, material addition, sand core design, gating system design, riser design, exhaust system design, machining allowance, sand casting scale and other casting process parameter design.
